Product Descriptions

The ForceSTAnd is a general-purpose, low cost, and highly efficient regenerative unit to convert 3 phase AC into DC currents. The ForceSTAnd can provide a solution tailored to meet your specific needs when combined with VZ7000 and Drive MuLti through common bus.

Product Characteristics

The ForceSTAnd is a three-phase thyristor controlled rectifier, capable of ac to dc rectification. Allowing for parallel connection up to three units, 200V units (18.5kW/unit at 200V) can provide up to 55kW capacity. For 400V units, it is flexible enough to deal with the power range from 37 to 110kW. A regenerative braking function is provided as standard. A regenerative resistor is required separately.

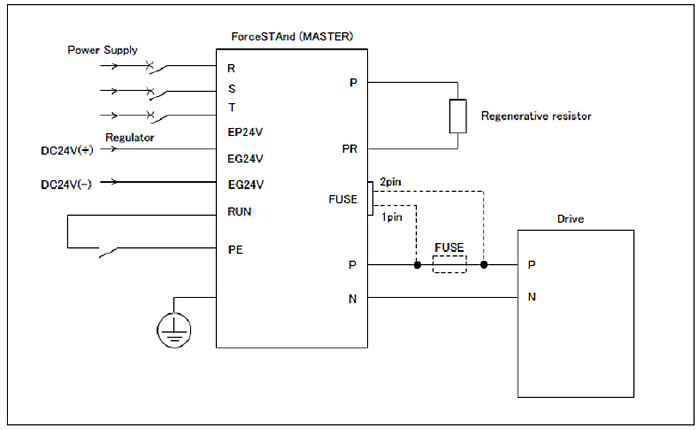

System Configuration
