Motors

ＲＥＪ offers various types of Motors for Customer’s Applications.

Servo Motor Lineup

Product Features

Optimal Drive Motor can be selected from our extensive lineup motors based on Your Apprications, Load, Installation Environment, and Cost.
Optimized Recommendations will be provided with Comparisons & Evalutaions of each Performance Characteristic, Control Requirement, and Durability.
ＲＥＪ improves Operation Rate & reduce Total Cost with Supports Your Operation consistently from Installation to Maintenance & Troubleshooting.

We offer the Most Suitable Drive Motor from our extensive lineup

Various Motor Applications

Industrial Sector Industtrial Machinery Examples Applicable Motor

Printing / Paper crafts

 Newspaper Rotary Press, Web Offset Press, Sheet-fed Offset Press

AC Vector (Torque const. type)

AC Vector (Power const. type)

Automobile

 Blanking Line, Three Dimensional Transfer

Servo Motor (Large)

Servo Motor (Middle)

Metal / Non-ferrous metal

 Continuous Annealing Line, Continuous Coating Line

AC Vector (Torque const. type)

AC Vector (Power const. type)

Plastic / Film

 Coating Line, Vacuum Evaporation System

Servo Motor (Small) ＆

AC Vector (Torque const. type)

Paper / Cardboard

 Corrugating Machine, Papar Cutting Machine

Servo Motor (Large)

Servo Motor (Middle)

Food

 Food Processing Machinery, Can Forming Machine

Servo Motor (Small) ＆

AC Vector (Torque const. type)

Electron / Semiconductor

 Flat Panel Display, Semiconductor Manufacturing Equipment

Servo Motor (Small) ＆

AC Vector (Torque const. type)

Transport

 Conveyor, Automated Warehouse

Servo Motor (Middle)

AC Vector (Torque const. type)

Entertainment

 Ski Resort Lift, Amusement Park Rides

AC Vector (Torque const. type)

Servo Motor (middle)

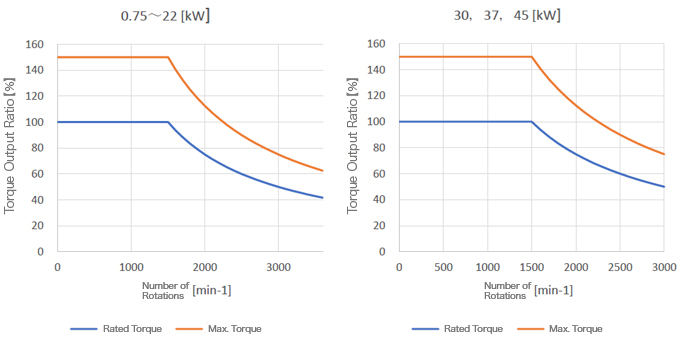

Induction Type : Torque Constant Series

Item Unit 6096A
（90L）		 6097A
（90L）		 6107A
（100L）		 6115A
（112M）		 6133A
（132S）		 6135A
（132M）		 6165A
（160M）		 6167A
（160L）		 6185A
（180m）		 6187A
（180L）
Rated Power kW 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22
Rated Torque N・m 4.77 9.55 14 23.5 35 47.7 70 95.5 118 140
Max Torque (1min) N・m 7.16 14.3 21 35.3 52.5 71.6 105 143 177 210
Rated Speed min-1 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500
Max Speed min-1 3600 3600 3600 3600 3600 3600 3600 3600 3600 3600
Power Rate kW/s 2.84 10.1 21.7 34.5 40.8 56.8 54.4 76 60.3 72.6
Rated Current A 4.1/2.1 7.6/3.8 12/6.0 19/9.5 29/14.5 39/19.5 55/27.5 70/35 85/43 100/50
Max Current A 6.2/3.2 11/5.7 18/9.0 29/14 44/22 59/29 83/41 105/53 128/65 150/75
Moment of Inertia x10
kg・m2		 0.008 0.009 0.009 0.016 0.03 0.04 0.09 0.12 0.23 0.27
Mass kg 28 28 32 50 65 75 115 135 190 220
Cooling Method – Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling

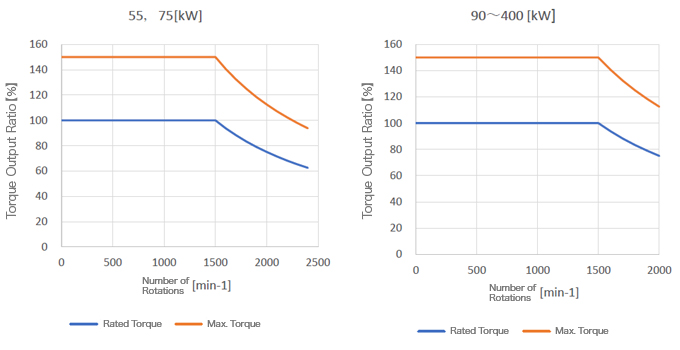

Item Unit 6205A
（200L）		 6206A
（200L）		 9207A
（200L）		 9224A
（225S）		 9254A
（250S）		 9256A
（250M）		 9284A
（280S）		 9286A
（280M）		 931LA
（315S）		 931LA
（315S）
Rated Power kW 30 37 45 55 75 90 110 132 160 180
Rated Torque N・m 191 236 286 350 477 573 700 840 1018 1146
Max Torque (1min) N・m 286 353 430 525 716 859 1050 1260 1528 1719
Rated Speed min-1 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500
Max Speed min-1 3000 3000 3000 2400 2400 2000 2000 2000 2000 2000
Power Rate kW/s 107 135 175 231 258 318 318 398 349 442
Rated Current A 134/67 160/80 182/91 125 165 192 235 280 345 385
Max Current A 201/101 240/120 273/137 187 247 288 352 420 517 577
Moment of Inertia x10
kg・m2		 0.34 0.41 0.47 0.53 0.88 1.03 1.54 1.77 2.97 2.97
Mass kg 270 295 310 380 510 570 710 760 1230 1230
Cooling Method – Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling
Item Unit 931MA
（315M）		 931NA
（315MN）		 931PA
（315MN）		 9352A
（355M）		 9354A
（355K）		 9356A
（355K）		 9400A
（400H）
Rated Power kW 200 220 250 280 315 355 400
Rated Torque N・m 1273 1400 1591 1752 2005 2260 2546
Max Torque (1min) N・m 1910 2100 2387 2674 3008 3390 3820
Rated Speed min-1 1500 1500 1500 1500 1500 1500 1500
Max Speed min-1 2000 2000 2000 2000 2000 2000 2000
Power Rate kW/s 492 535 622 534 616 712 704
Rated Current A 420 460 520 575 645 725 840
Max Current A 630 690 780 862 967 1087 1260
Moment of Inertia x10
kg・m2		 3.29 3.66 4.07 5.95 6.52 7.17 9.2
Mass kg 1310 1420 1490 1800 1940 2050 2650
Cooling Method – Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling

※Above Features are Capabilities in case that Above Motors are use with Our Recommended Control System.

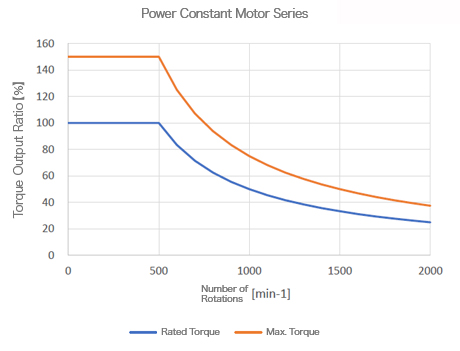

Induction Type : Power Constant Motor Series

Item Unit 9256A
（250M）		 9284A
（280S）		 9284A
（280S）		 9286A
（280M）		 931LA
（315S）		 931NA
（315MN）		 9350A
（355M）		 9354A
（355K）		 9356A
（355K）		 9400A
（400H）
Rated Power kW 18.5 22 30 37 45 55 75 90 110 132
Rated Torque N・m 353 420 573 706 859 1050 1432 1719 2100 2521
Max Torque (1min) N・m 530 630 859 1060 1289 1575 2148 2578 3151 3781
Rated Speed min-1 500 500 500 500 500 500 500 500 500 500
Max Speed min-1 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000
Power Rate kW/s 70.4 58.4 108 140 175 214 214 256 344 371
Rated Current A 58/41 73/50 87/67 105/80 125/100 160/120 186/159 220/188 270/225 340/265
Max Current A 87/62 110/75 130/100 157/120 187/150 240/180 279/238 330/282 405/338 510/397
Moment of Inertia x10
kg・m2		 1.77 3.02 3.02 3.55 4.20 5.13 9.57 11.5 12.8 17.1
Mass kg 600 750 750 820 1270 1460 1860 2120 2240 2900
Cooling Method – Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling
Item Unit 9402A
（400H）		 9406A
（400H）		 9402A
（400H）		 9452A
（450H）		 9456A
（450H）		 9502A
（500）
Rated Power kW 160 200 220 250 300 330
Rated Torque N・m 3055 3819 4201 4774 5729 6302
Max Torque (1min) N・m 4583 5729 6302 7161 8594 9453
Rated Speed min-1 500 500 500 500 500 500
Max Speed min-1 2000 2000 2000 2000 2000 2000
Power Rate kW/s 496 634 767 718 848 841
Rated Current A 400/325 505/400 580/440 615/495 750/585 795/660
Max Current A 600/487 757/600 870/660 922/742 1125/877 1192/900
Moment of Inertia x10
kg・m2		 18.8 23.0 23.0 317 38.7 47.2
Mass kg 3020 3400 3400 3800 4300 5100
Cooling Method – Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling

※Above Features are Capabilities in case that Above Motors are use with Our Recommended Control System.

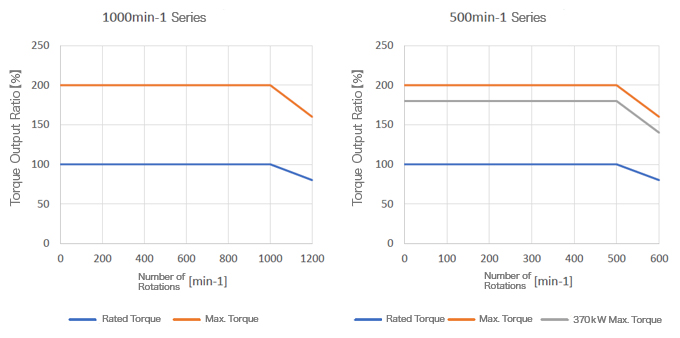

Synchronous Type：1000min-1/500min-1Series

1000min-1Series

Item Unit 3710H42L
（160）		 5510H42L
（160）		 7510H42T
（180）		 11010H42T
（180LL）		 15010H42T
（250S）		 22010H42T
（250S）
Rated Power kW 37 55 75 110 150 220
Rated Torque N・m 353 525 716 1050 1432 2101
Max Torque (3Sec) N・m 706 1050 1432 2100 2864 4202
Rated Speed min-1 1000 1000 1000 1000 1000 1000
Max Speed min-1 1200 1200 1200 1200 1200 1200
Power Rate kW/s 2148 2072 2698 3937 2929 4598
Rated Current A 81 120 170 252 324 461
Max Current A 162 240 340 504 648 922
Moment of Inertia x10
kg・m2		 0.058 0.133 0.19 0.28 0.70 0.96
Mass kg 190 220 220 320 510 560
Cooling Method – Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling

※Above Features are Capabilities in case that Above Motors are use with Our Recommended Control System.

500min-1Series

Item Unit 3705H42L
（180L）		 5505H42L
（180LL）		 7505H42T
（250S）		 11005H42T
（250S）		 22005H44T
（280LX）		 37005H44T
（315LX）
Rated Power kW 37 55 75 110 220 370
Rated Torque N・m 707 1050 1432 2101 420.2 7066
Max Torque (3Sec) N・m 1414 2100 2864 4202 8403 12605
Rated Speed min-1 500 500 500 500 500 500
Max Speed min-1 600 600 600 600 600 600
Power Rate kW/s 2630 4083 3015 4598 7676 11831
Rated Current A 86 125 162 235 475 665
Max Current A 192 250 324 470 950 1200
Moment of Inertia x10
kg・m2 		0.19 0.27 0.68 0.96 2.30 4.22
Mass kg 220 320 500 550 1050 1550
Cooling Method – Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling Forced cooling

※Above Features are Capabilities in case that Above Motors are use with Our Recommended Control System.

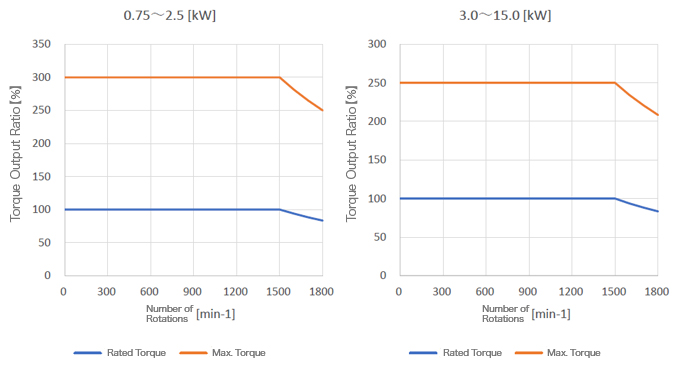

Synchronous Type : Middle Size Series

Item Unit TS4815
（□100）		 TS4817
（□100）		 TS4836
（□130）		 TS4837
（□130）		 TS4839
（□130）		 TS4884
（□180）		 TS4887
（□180）		 TS4889
（□180）		 TS4897
（□180）
Rated Power kW 0.75 1.0 1.65 2.0 2.5 3.0 4.5 5.5 7.5
Rated Torque N・m 4.8 6.8 10.5 12.7 15.9 19.1 28.6 35.8 47.7
Max Torque (3Sec) N・m 14.4 20.4 31.5 38.1 47.7 47.7 71.5 89.5 119.2
Rated Speed min-1 1500 1500 1500 1500 1500 1500 1500 1500 1500
Max Speed min-1 1800 1800 1800 1800 1800 1800 1800 1800 1800
Power Rate kW/s 63.5 96.3 95.1 113 147 123 189 224 268
Rated Current A 2.9 3.4 4.6 5.6 7.0 7.7 12.1 14.5 19.3
Max Current A 8.7 10.2 13.8 16.8 21.0 19.3 30.3 36.3 48.3
Moment of Inertia x10
kg・m2 		3.6 4.8 11.6 14.3 17.2 29.5 43.3 57.0 84.8
Mass kg 5.7 6.2 8.0 9.6 11.2 15.0 17.0 21.0 31.0
Cooling Method – Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling
Item Unit TS4927
（□220）		 TS4920
（□220）
Rated Power kW 11.0 15.0
Rated Torque N・m 70.0 95.5
Max Torque (3Sec) N・m 175.0 238.7
Rated Speed min-1 1500 1500
Max Speed min-1 1800 1800
Power Rate kW/s 227.8 290
Rated Current A 28.0 31.6
Max Current A 70.0 79.0
Moment of Inertia x10
kg・m2		 215 313
Mass kg 46.0 62.0
Cooling Method – Natural cooling Natural cooling

※Above Features are Capabilities in case that Above Motors are use with Our Recommended Control System.

Variety of Customized Options to suit your nees are Available.

Options AC Vector
(Torque Constatn Type)		 AC Vector
(Power Constatn Type)		 Servo Motor
(Large Type)		 Servo Motor
(Middle Type)		 Servo Motor
(Small Type)
Keyway Machining 〇 〇 〇 〇 〇
Shaft Tapping 〇 〇 〇 〇 〇
Shaft Spline Machining × × 〇 × ×
Terminal Box Position Change (L/R) 〇 〇 × × ×
Vibration Proof × × 〇 〇 ×
Rated / Max. Number of Rotations Change 〇 〇 〇 × ×
Speed Indicator Resolution Change 〇 〇 × × ×
Built-In Brake 〇 〇 〇 × 〇
Water Cooling × × 〇 × ×

Please Download from This Link and Confirm Dimension Sheets & Other Further Details.
